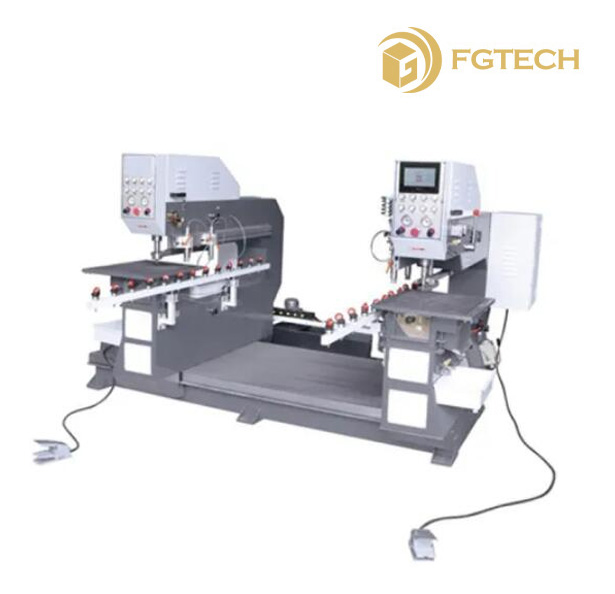

Automatic Double-Head Glass Drilling Machine
Product ID : SSZ080
Product Attributes :
Linear guide rail guiding, ball screw to drive, accurate positioning and guidance
Product Description
Basic Info.
Model NO.
FGD-AD SSZ080
Trademark
AGLASSTEC
Origin
China
HS Code
8464901900
I.Description
- Linear guide rail guiding, ball screw to drive, accurate positioning and guidance
- Button or foot switch start, single cycle working mode and continuous cycle working mode are available.
- Two drill bits can linkage control; each drill bit can work independent
- Suitable for batch and bulk production
II. Technical parameters
| The drilling depth of Y axis | 1250mm | |
| The min. distance between holes | 470mm | |
| The max. distance between holes | 2000mm | |
| Glass thickness | 3-19mm | |

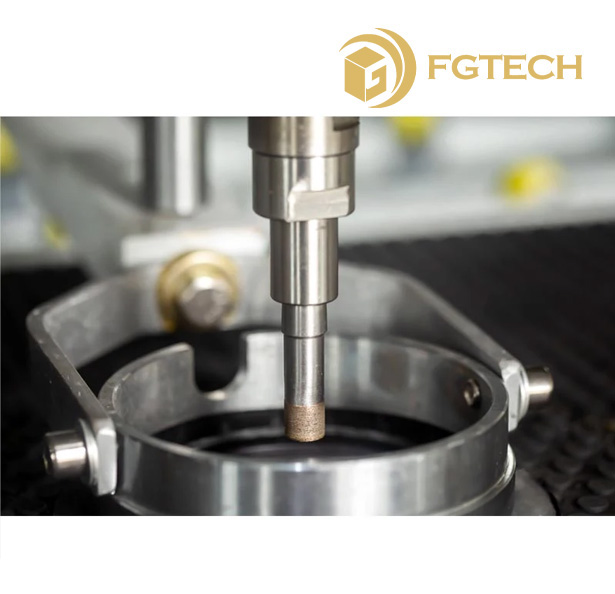

| Hole diameter | Dia.4 - 80mm | |
| The max. feeding distance of Z axis | 40mm | |
| The height of table | 900±50mm | |
| The overall dimension | 4380*2200*1700mm | |
| Power supply | Voltage | 380V, 50Hz |
| Watt | 5.65 KW | |
| Air pressure | Connection | Dia.8mm air pipe |
| Pressure | 0.6 Mpa | |
| Water flow | 18 m³/ hour | |

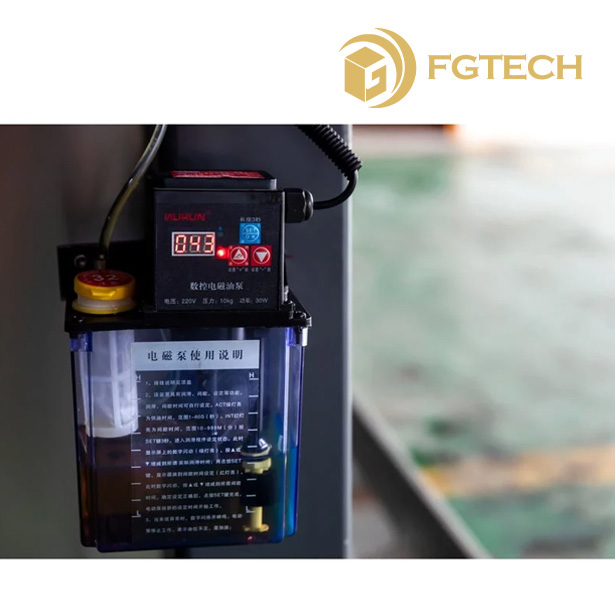

| Lubricant | 20# | |
| Water source | Connection | Dia. 10mm water pipe |
| Pressure | ≥0.3 Mpa | |
| Enviroment temperature | 6-40 ºC | |
