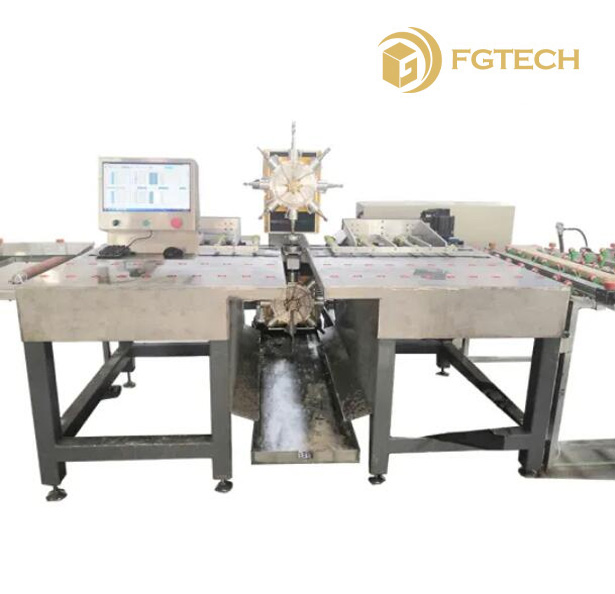

Intelligent CNC Multi-Head Glass Drilling Machine
Automatic tool change system, it realize quickly switching the 8 differents tools automatically,without manual operation.
Basic Info.
1.Automatic tool change system, it realize quickly switching the 8 differents tools automatically,without manual operation.
2.High precision of switching module structure and high accuracy of hole.
3. Reliable waterproof isolation structure, extend the equipment life time.
4. Unique cooling water recovery structure, to acheive the max. degree of drilling cooling water recovery.
5. High precision positioning structure, the error range between two holes is less than 0.5mm.
6. With drawing editing software, the office order is seamlessly connected to the workshop and can also be connected with ERP system.
7. Humanized operation interface, easy to operation.
I. Technical inforamtion
| Item NO. | Name | Specification | Manufacturer |
| 1 | Computer | INTEL-1037U | 16.5" GIGABYTE |
| 2 | Display screen | VA1620-H15.6 | VIEWSONIC |
| 3 | PLC | H3U | INOVANCE |
| 4 | Servo motor | 1030CB | INOVANCE |
| 5 | Spindle system | EMA032A | INOVANCE |
| 6 | Low voltage electric accessories | SCHNEIDER | |
| 7 | Bearing | Japan NSK | |
| 8 | Guide screw | CSK | |
| 9 | Detector switch | D5B | OMRON |
| 10 | Pneumatic component | Airtac & SMC |
II. Main processing paremeter
| 1 | Total power | 8 KW | |
| 2 | Average power | 4 KW | |
| 3 | Voltage/ Frequency | 380V/50HZ | |
| 4 | Spindle motor | 1.2 KW | |
| 5 | Spindle speed | 800-3500 RPM | |
| 6 | Max. Glass size | 2600*1200 MM | |
| 7 | Min. Glass size | 800*150 MM | |
| 8 | Glass thickness | 4-19 mm | |
| 9 | Processing efficience | 260 pcs/shift and there are average 6 holes/pcs | |
| 10 | Feeding speed | 1mm/s | |
| 11 | Chamfering efficience | 5s | |
| 12 | Positioning speed | 15m/min | |
| 13 | Switching time | 2s | |
| 14 | Drill bit quantities | 8+8(7+1/7+1) | |
| 15 | Hole accuracy | ±0.5mm between two holes | |
| 16 | Hole diameter | 6-30mm | |
