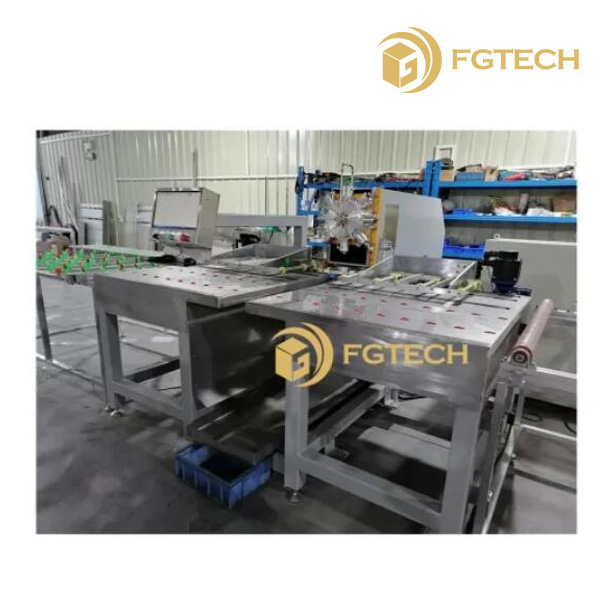

Fgd-CD-8 Intelligent CNC Multi-Head Glass Drilling Machine
Product ID : FGD-CD-8
Product Attributes :
The automatic tool change system is enable to quickly switching the 8 different tools automatically without manual intervention.
Product Description
Basic Info.
Model NO.
FGD-CD-8
Average Power
4kw
Voltage/ Frequency
380V/50Hz
Spindle Motor
1.2kw
Spindle Speed
800-3500 Rpm
Trademark
FGTECH
Transport Package
Iron Frame & Shrink Film
Specification
Spindle speed 800-3500 RPM
Origin
China
EQUIPMENT FEATURES:
- The automatic tool change system is enable to quickly switching the 8 different tools automatically without manual intervention.
- High precision tool changer structure and high accuracy of hole.
- Reliable waterproof isolation structure for long equipment life.
- Unique cooling water recovery structure, achieve the max. degree of drilling cooling water recovery.
5. High precision positioning structure, the error range between two holes is less than 0.5mm.
6. With drawing editing software, the office order is seamlessly connected to the workshop and can also be connected with ERP system.
7. Humanized operation interface, easy to operation.
1.Technical inforamtion
| Item NO. | Name | Specification | Manufacturer |
| 1 | Computer | INTEL-1037U | 16.5" GIGABYTE |
| 2 | Display screen | VA1620-H15.6 | VIEWSONIC |
| 3 | PLC | H3U | INOVANCE |
| 4 | Servo motor | IS620P | INOVANCE |
| 5 | Spindle system | IS620P | INOVANCE |
| 6 | Low voltage electric accessories | SCHNEIDER | |
| 7 | Bearing | Japan NSK | |
| 8 | Guide screw | LMG25 | CSK |
| 9 | Detector switch | D5B-1511 | OMRON |
| 10 | Pneumatic component | Airtac |
2.Main processing paremeter
| 1 | Total power | 8 KW | |
| 2 | Average power | 4 KW | |
| 3 | Voltage/ Frequency | 380V/50HZ | |
| 4 | Spindle motor | 1.2 KW | |
| 5 | Spindle speed | 800-3500 RPM | |
| 6 | Max. Glass size | 2600*1200 MM | |
| 7 | Min. Glass size | 1000*150 MM | |
| 8 | Glass thickness | 4-19 mm | |
| 9 | Processing efficience | 260 pcs/shift and there are average 6 holes/pcs | |
| 10 | Feeding speed | 1mm/s | |
| 11 | Chamfering efficience | 5s | |
| 12 | Positioning speed | 15m/min | |
| 13 | Tool change time | 2s | |
| 14 | Drill bit quantities | 8+8(7+1/7+1) | |
| 15 | Hole accuracy | ±0.5mm between two holes | |
| 16 | Hole diameter | 6-30mm | |
