Vertical Film Packing Machine

TECHNICAL SPECIFICATION
MODEL NUMBER:LC-AM3720
POWER :2KW
TYPE OF FILM: STATIC PROTECTION FILM (PE/PVC)
HEIGHT OF FILM ROLL:≤1300MM
WIDTH OF FILM RANGE:300-2000MM
LENGTH OF FILM RANGE:500-3700MM
GLASS THICKNESS:4-50MM
TANSIMISSION SPEED:12M/MIN (adjustment)

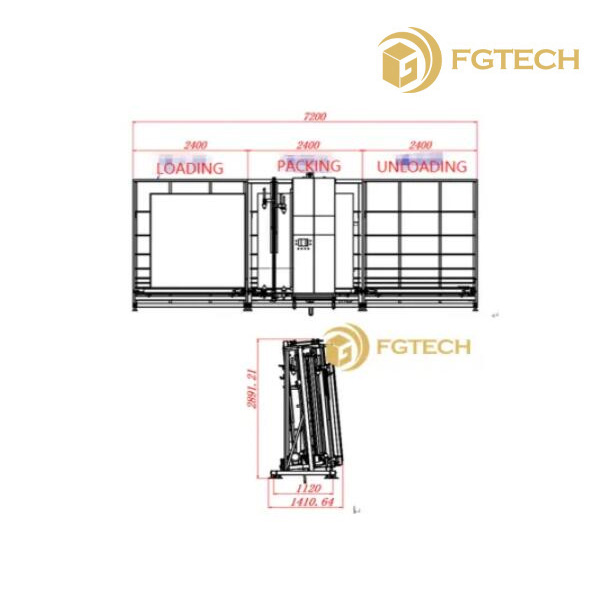

MACHINE SIZE::7200*1400*3000mm
VOLTAGE/FREQENCY:AC380V±5%;50HZ
AIR PRESSURE:≥0.5Mpa

FUNCTION OF MACHINE
Various parameters can be adjusted, all actions can be manually operated on the HMI and real-time feedback information is displayed;
The operation interface / debugging has manual, automatic and pause functions; operation / maintenance secondary password authority (operator
Unable to adjust parameters);
Fault alarm function, piece count function;
The control cabinet is equipped with a cooling fan;
Equipment / unloading place is equipped with emergency stop device, not for soft emergency stop
With three-side automatic film cutting function, the width of the three-sided blanking width can be adjusted separately in HMI;
The equipment has the function of double-sided film and single-sided film;
The vertical design saves more space, the vertical to vertical glass transfer is more labor-saving and safe;
Layered design of protective film, flexible combination of film size, saving film cost;
Rolling cutter head cuts the film, the pressure is automatically controlled to prevent scratching the glass.
Equipment technical requirements:
1. Equipment processing glass specifications: maximum 2000 * 3700MM, minimum 300 * 500MM, thickness 4--50MM.
2. With single-sided and double-sided film lamination function.
3. The glass blank width range is 4-50MM.
4. The running speed of the equipment is adjustable from 0-12M / MIN.
5. The surface of the film is smooth, without scratches, and meets the quality requirements of production and processing.
6. With the numerical display function of the width adjustment position, it is convenient for operation.
7. Equipped with safety protection emergency stop brake and alarm device.
8. It has the functions of interactive setting of human-machine interface and alarm display.
9. Thickness of cut film: 0.03-0.05mm
BASIC CONFIGURATION
1. Serve: Xinjie
2. PLC: Xinjie
3. Frequency converter: Xinjie
4. Touch screen: Xinjie
5. Low-voltage electrical appliances: Schneider
6. Pneumatic: AIRTAC
