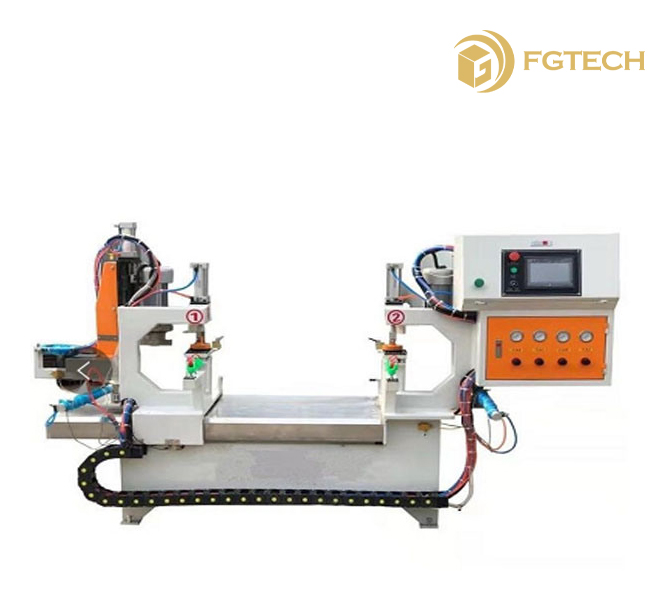

Glass Corner Round machine
Chamfering machine structure is welded by square pipe and annealed on large-scale machine tool. It is driven by guide rail and screw Rod Motor. The control system is a set of control system which is composed of PLC and Zhengtai electric appliance together with the solenoid valve of pneumatic fittings sensor.
Chamfering machine structure is welded by square pipe and annealed on large-scale machine tool. It is driven by guide rail and screw Rod Motor. The control system is a set of control system which is composed of PLC and Zhengtai electric appliance together with the solenoid valve of pneumatic fittings sensor.
|
Machine Frame |
Use steel structure with annealing treatment |
|
Water Channel |
Stainless Steel |
|
Guide Rail |
TBI、HIWIN |
|
Grinding Motor |
Jinlong, with water proof |
|
Pneumatic Components |
Sima Pneumatic |
|
Electric Components |
CHINT |
|
Electric Cable |
Zhujiang Cable |
|
PLC |
XINJE |
|
Processing Round Corner |
Round Corner：R5-R60 |
|
Glass Thickness |
3-15mm |
|
Processing Speed |
5-8Seconds for one R20 corner |
Technical parameters
|
Thickness of the glass |
3-15mm |
|
Glass size |
360*200-1600mm |
|
Motor power |
Jinlong 2.2kw=2wh |
|
High speed opening and closing |
1000kw |
|
Air pressure |
6kg |
|
Machinee Size |
2800×1000×1600mm |
|
Weight |
1200kg |
