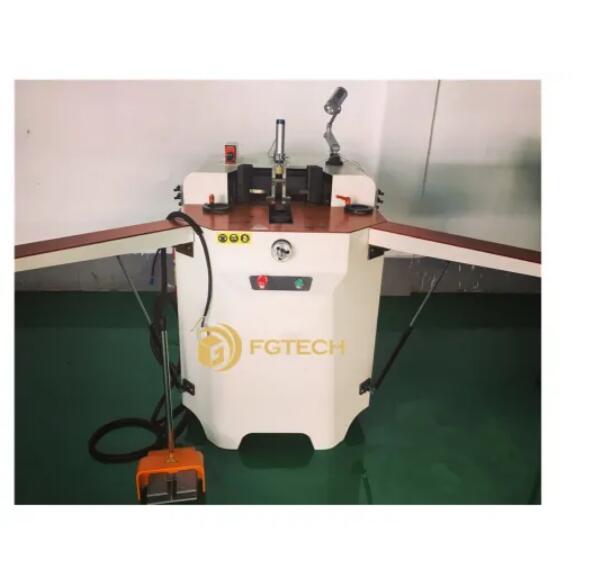

Fgc-333n Hermal-Break Profile Crimping Machine
Product Attributes :
Put the gusset into the 45°aluminum alloy window profile, move the bump folks, squeeze the two window profile tightly and make a 90°angle firmly.
Product Description
Basic Info.
Model NO.
FGC-333N
Max. Working Travel
70mm
Max. Working Push Power
8000kg
Trademark
FGTECH
Transport Package
Iron Frame & Shrink Film
Specification
Oil pump motor power: 5HP
Origin
China
Put the gusset into the 45°aluminum alloy window profile, move the bump folks, squeeze the two window profile tightly and make a 90°angle firmly. You can adjust the machine to 1-side-four-point crimping according to the characteristic of the gusset. Because of enlarging the size and the crimping force, it is an ideal choice for the corner crimping of thermal-break door and window profiles.
MAIN TECHNIQUE PARAMETER
| 1. | Oil pump motor power | 5HP |
| 2. | Oil pump rated pressure | 20Mpa |
| 3. | Max. working travel | 70mm |
| 4. | Max. working push power | 8000KG |
| 5. | Working air pressure | 0.6-0.7Mpa |
| 6. | Impact point adjustable range | 8-150mm |
| 7. | Overall dimension (L×W×H) | 1280x1100x1350mm |
| 8. | Weight | 800Kg |
