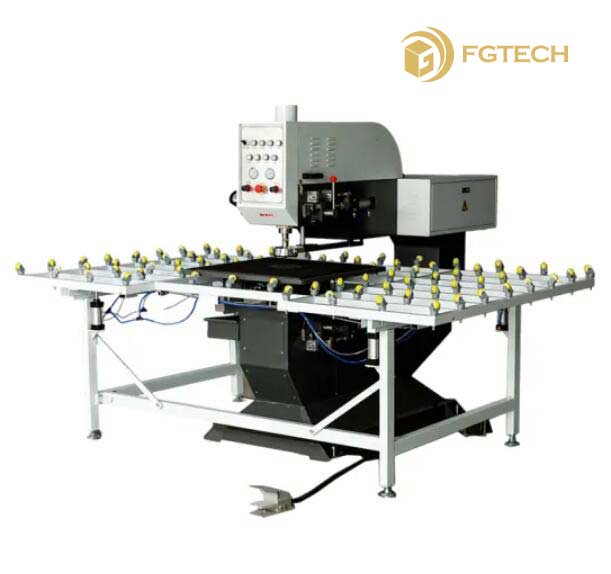

2380*2200*1700mm Automatic Glass Drilling Machine for Home Appliance Fgd-Adsz080-2
Product ID : FGD-ADSZ080-2
Product Attributes :
All welding parts are processed after annealing treatment, and the outer sliding sleeve is made of ductile iron. The inner sliding sleeve is plated with hard chromium and then work with the outer sliding sleeve. The whole bit assembly has high precision and long service life.
Product Description
Basic Info.
Model NO.
FGD-ADSZ080-2
Trademark
AGLASSTEC
Specification
Hole diameter: 4 -100 mm
Origin
China
HS Code
8464901900
I.Description
- Oil pressure buffer technology; Drilling quality is stable.
- All welding parts are processed after annealing treatment, and the outer sliding sleeve is made of ductile iron. The inner sliding sleeve is plated with hard chromium and then work with the outer sliding sleeve. The whole bit assembly has high precision and long service life.
- The lower drill bit work automatically, the upper drill bit has auto mode and manual mode. With excellent processing performance
- The machine can provide manual hole positioning, infrared positioning, mechanical positioning; Various positioning modes facilitate the batch production and bulk production.
II. Technical parameters
| The drilling depth of Y axis | 1250mm | |
| The max. glass size | 2400*3500mm | |
| The min. glass size | 60*60mm | |
| Glass thickness | 3-30mm | |
| Hole diameter | Dia.4 - 80mm | |
| The max. feeding distance of Z axis | 40mm | |
| The height of table | 900±50mm | |
| The overall dimension | 2380*2200*1700mm | |
| Power supply | Voltage | 380V, 50Hz |
| Watt | 2.45 KW | |
| Air pressure | Connection | Dia.8mm air pipe |
| Pressure | 0.6 Mpa | |
| Water flow | 18 m³/ hour | |
| Lubricant | 20# | |
| Water source | Connection | Dia. 10mm water pipe |
| Pressure | ≥0.3 Mpa | |
| Enviroment temperature | 6-40 ºC | |
