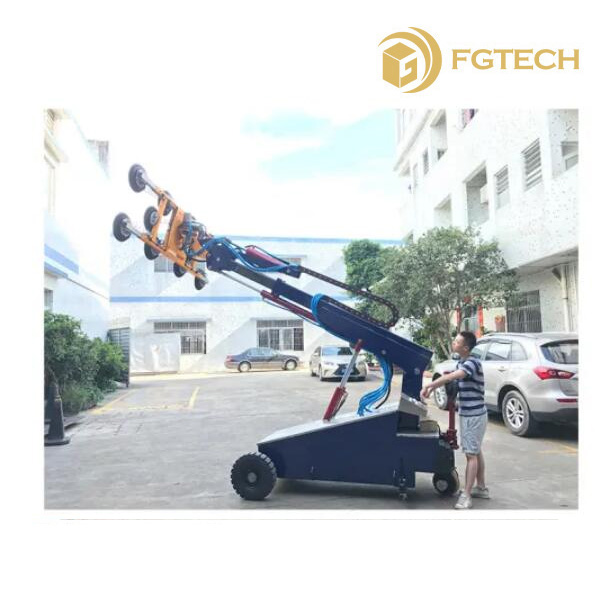

High Efficiency 800kg Lifting Glass Vacuum Chuck Robot with Motorized Movements
Product Attributes :
The entire system consists of electric vacuum gripping device,hydraulic performance devices,electric driving system and safety protection system,to achieve gripping,lifting,handling,moving and placing glass to specific location by serial of process setting.
Product Description
Basic Info.
Model NO.
FGV-CAR-800
Pads Description
Black Rubber, Abrasion Resistant, Long-Time Heat R
Product Weight
1800kg
Max.Glass Size
5000mm(L)*3000mm(W)*4-25mm(T)
Min. Glass Size
2200mm(L) *1200mm(W)*4-25mm(T)
Lifting Material
Glass, Marble, Plastic Boards, Metal Sheet
Trademark
AGLASSTEC
Transport Package
Iron Frame & Shrink Film
Specification
3750* 1300 * 2500mm
Origin
China
1.PRODUCT DESCRIPTION
The lifter is designed for electric and hydraulic operation.The entire system consists of electric vacuum gripping device,hydraulic performance devices,electric driving system and safety protection system,to achieve gripping,lifting,handling,moving and placing glass to specific location by serial of process setting.The lifter can be assembled to various kinds of models to fit for different size of glass.
2.Technical data
| Code | FGV-CAR-800 | |
| Safe Load Capacity | 800kg | |
| Number and Size of Pads | 16pads/ [300mm]diameter | |
| Pads Description | Black rubber, abrasion resistant, long-time heat resistant up to 120°C | |
| Product Weight | 1800kg | |
| Product size | 3750mm(L)* 1300mm(W) * 2500mm(H) | |
| Max.Glass Size | 5000mm(L)*3000mm(W)*4-25mm(T) | |
| Min. Glass Size | 2200mm(L) *1200mm(W)*4-25mm(T) | |
| Lifting Material |
Glass, marble,plastic boards,metal sheet,coated boards and other plates. | |
| Battery Specs. | 200Ah *8pcs | |
| Working Power | 24V DC | |
| Batter Charge | 220V 50/60hz | |
| Noise Level | Less than 80Db | |
| Suitable for lifting | Material properties: Gastight/ non-porous, smooth surface Example: flat glass, building glass, various kinds of processing glass and special glass. |
|
| Performance | Hydraulic tilt 180° upwards and downwards with stopping at any position. Electric motorized rotation 360° with stopping at any position. Electric head slew left & right 90°with stopping at any position. Hydraulic lift up and down up to 4000mm. Hydraulic extend the lifting arm to 1000mm. Electric motor car, control by steering wheel Recharge when electricity power less than 30% |
|
Safety protection |
When vacuum reaches to the specified pressure,vacuum pump automatically stops to achieve energy saving; when vacuum pressure is insufficient,it automatically restarts to achieve vacuum compensation. |
