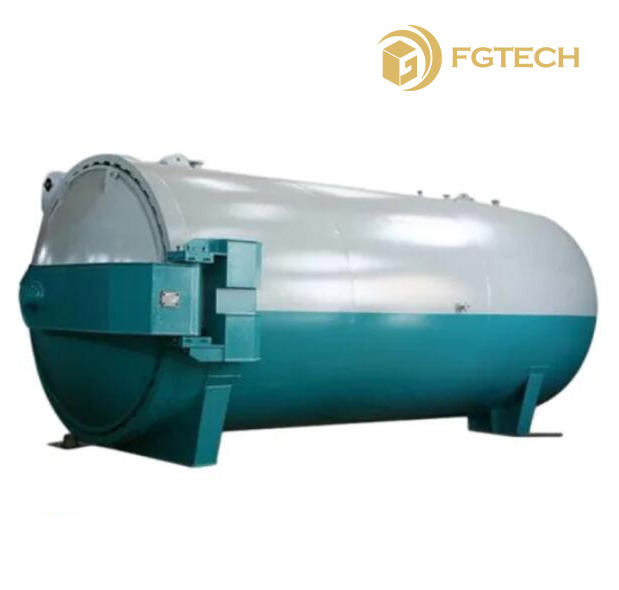

Fgl-AC-DN3150*5000 Glass PVB Laminating Machine Autoclave Solution
is a horizontal pressure equipment, with open the door or start the door to open two. The internal installation of the electric components, cooling devices, kettle also arranged a circulating air duct and the car track, the body is equipped with open safety interlock device.
Basic Info.
FGL-AC-DN3150*5000 Glass Laminating machine Autoclave Solution
General description
Autoclave: is a horizontal pressure equipment, with open the door or start the door to open two. The internal installation of the electric components, cooling devices, kettle also arranged a circulating air duct and the car track, the body is equipped with open safety interlock device,
This mechanism consists of Jiangsu Province Special Equipment Safety Supervision Inspection Institute mortem examination pattern recognition.
Control system: The system can be divided into two kinds: one is the manual operation control system: the other is the automatic operation control system. Through the system, the door opening and closing process and automatic control, the kettle with automatic control of the instrument, and according to process requirements on the temperature and pressure adjustment, and with over-voltage alarm system over temperature, safe and reliable.
1.Technical Parameters
| No. | Specification | Unit | Technical Parameters | Remarks |
| 1 | design standards | GB150-2011 Steel pressure vessels GB150-2011 |
||
| 2 | Operating pressure | Mpa | 1.3 | |
| 3 | Design temperature | ºC | 150 | |
| 4 | Operating temperature | ºC | 130 | |
| 5 | Working medium | Compressed air |
Compressed air |
|
| 6 | Electric heating power | KW | 240 | |
| 7 | Insulation thickness of asbestos | mm | 75 | |
| 8 | Control mode | PLC + touch screen | ||
| 9 | Safety valve opening pressure | Mpa | 1.45 | |
| 10 | Autoclave body | mm | 3150 | |
| 11 | Effective length of autoclave body | mm | 5000 | |
| 12 | Safety interlocks | Set | 1 set |
FGL-AC-DN3150*5000 Glass Laminating machine Autoclave Solution
2.Cooling system
Autoclave inner cooler device in the autoclave tail by the finned tube welding composition, through the water cycle and the wind cycle to quickly discharge the temperature inside the kettle, effectively shorten the processing time.
FGL-AC-DN3150*5000 Glass Laminating machine Autoclave Solution
3. Main Configurations
| No. | Specification | Unit | Quantity | Manufacturing unit | Remarks |
| 1 | Pneumatic valves | pcs | 1 | Kam on the valve industry | |
| 2 | Safety valve | pcs | 1 | Kam on the valve industry | |
| 3 | Ball valves | pcs | 2 | Kam on the valve industry | |
| 4 | Pressure gauge | pcs | 2 | Heshan instrumentation | |
| 5 | Pressure transmitter | pcs | 1 | Fuyang prosperity instrument | |
| 6 | Air cylinder | pcs | 1 | Wuxi Susheng'er | |
| 7 | Thermal resistance | pcs |
1 | Electrical and Mechanical Services | |
| 8 | Heating pipe (Nickel-chromium alloy) |
pcs |
45 | Electrical and Mechanical Services |
|
| 9 | PLC touch screen electrical control box | set |
1 | Chint or Schneider | |
| 10 | Pressure regulating valve | set |
1 | Baofeng pneumatic components | |
| 11 | Electric motor | set |
1 | Directly connected motor | |
| 12 | QGB150 * 500 air cylinder |
set |
1 | Hengtong Hydraulic Pneumatic Machinery |
FGL-AC-DN3150*5000 Glass Laminating machine Autoclave Solution
4.Equipment characteristics
- Manufacturing standards
The autoclave in accordance with the People's Republic of China national standards: GB150-2011 "steel pressure vessel" standard design and manufacturing, and with the Jiangsu Provincial Special Equipment Safety Supervision and Inspection Institute of a set of security interlocks, safe and reliable.
- Heating system
Heating pipe material for the nickel-chromium alloy.
- Vacuum interface
- Autoclave set aside two vacuum tube.
- Electric control cabinet
The electric cabinet adopts the PLC centralized control, the display display and the operation, realizes the high accuracy, the real-time nature control. The process of temperature curve and pressure curve in real-time tracking display and automatic preservation, and can be transferred out, access or print. Independent temperature and pressure protection circuit design. Once the device over-temperature, over-voltage or failure, can automatically alarm.
- Autoclave interior decoration
Equipment interior stainless steel decoration, energy saving, beautiful, durable and so on.
FGL-AC-DN3150*5000 Glass Laminating machine Autoclave Solution
5. Accessories
| No. | Specification | Unit | Quantity |
| 1 | Autoclave door seal | set | 1 |
| 2 | Heating pipe | root | 2 |
| 3 | Thermal resistance | root | 1 |
