Fast Edging Diamond Wheel Fge-Vs150
Product ID : FGE-VS150
Product Attributes :

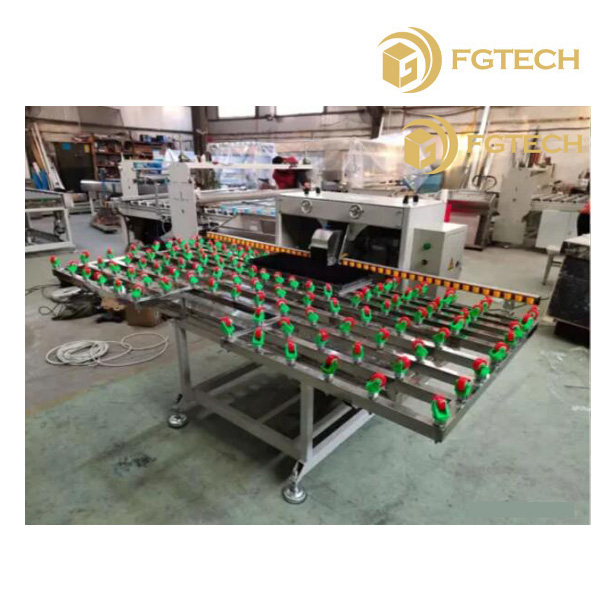

This machine is designed for grinding/polishing bevel edge,with bottom edge grinding.
Product Description
Basic Info.
Model NO.
FGE-VS150
Power
3pH-AC380V+N 50Hz
Motor
0.75kw*2
Low-E
1.1kw*1
Edge Max Size
1600*1600mm
Edge Min Size
400*400mm
Wheel Type
D150*D20*T20 mm-180p
Table Outsize
L2200*W1080 mm
out Size
L2200*W1550*H1200 mm
Trademark
FGTECH
Transport Package
Suitable for Sea Transportaiton
Specification
L2200*W1550*H1200 mm
Origin
China
The main technical parameters:
Power:3PH-AC380V+N 50Hz
Motor:power of grinding wheel 0.75KW*2 sets (protection grade IP56)
Film removal motor:1.1KW*1 set (optional)
Recommended maximum grinding glass size:1600*1600mm
Minimum grinding glass size:400*400mm
Diamond wheel specifications:D150*d20*T20 mm-180P
Table size:L2200*W1080 mm
Overall dimensions of the machine:L2200*W1550*H1200 mm
