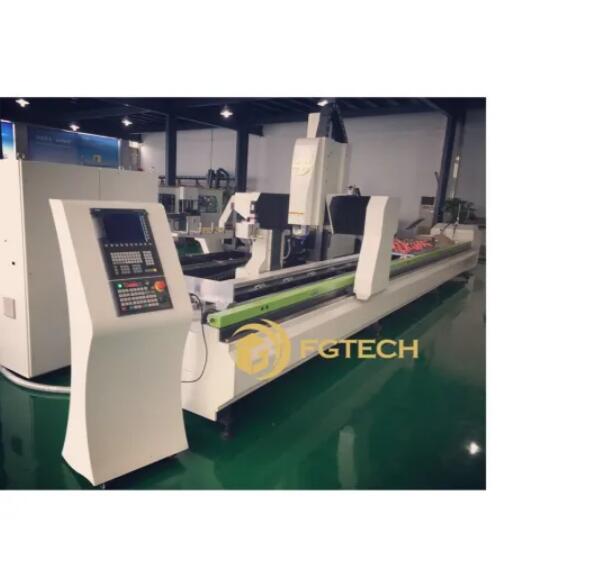

Fgc-450 3 Axis CNC Machining Center
Product ID : FGC-450
Product Attributes :
Suitable for processing of milling, drilling hole, cutting and tapping on various kinds of aluminum profiles.
Product Description
Basic Info.
Model NO.
FGC-450
Trademark
FGTECH
Specification
working length of X axis: 4500mm
Origin
China
Suitable for processing of milling, drilling hole, cutting and tapping on various kinds of aluminum profiles. It can complete processing for hole and notch into the same work piece once, ensure the high efficiency. Adopts high quality(LNC) computer numerical control system, friendly interface, operate easily. With 6-position movable tool, and changes tools automatically and quickly. Adopts Janpan Yaskawa AC servo motor, high quality ball screws, linear guide rack, ensure of high precision.
MAIN TECHNIQUE PARAMETER
| Item | Unit | Data | |
| Processing size | X | mm | 4500 |
| Y | mm | 300 | |
| Z | mm | 300 | |
| Processing accuracy | position | mm | ±0.05 |
| Repeat position | mm | X-axis ±0.03 Y-axis ±0.02 Z-axis ±0.02 |
|
| Drilling sag | mm/mm | 0.1/100 | |
| Cylinder | mm | 0.1 | |
| Cutting surface roughness | um |
Ra 1.6 um |
|
| Feeding speed | X-axis | m/min | 60 |
| Y-axis | m/min | 30 | |
| Z-axis | m/min | 20 | |
| Tool change time | s | 10 | |
| Main spindle | Power /rotary speed | KW /rpm | 6/24000 |
| Servo motor (Yaskawa) | X | KW | 1.3 |
| Y | KW | 0.75 | |
| Z | KW | 0.85 | |
| Track motor | KW | 0.25 | |
| Tool magazine | KW | 0.45 | |
| Rotated tool magazine | 6-positions | ||
| Collect | Max diameter | mm | Ø 15 |
| voltage/total power | 380V 50HZ/10KW | ||
| Overall dimension | mm | 5500 x 1500 x 1600mm | |
| Power source | Power supply | KVA | 20 |
| Air pressure | Kg/cm2 | 6~8 | |
| weight | T | 3000 | |
