10 Motors Glass Straight Line Edging Grinding and Polishing Machine for Flat Glass/Mirror/Stone/Marble Fge-Vs 10325e
Conveyor adopts chain transmitting system consisting of special stretchy rubber pads.Timing belt transfers glass.
Basic Info.
Machine Description
The machine is designed for grinding/polishing bottom edge and arris of flat glass. Conveyor adopts chain transmitting system consisting of special stretchy rubber pads.Timing belt transfers glass. The machine has the characteristic of smooth and steady ,easy to operation and maintenance,Front beam can be adjusted automatically for glass of different thickness.
Technical parameters
(1)Over all dimension:7000mm×1000mm×2600mm
(2)Height of input conveyor:760mm
(3)Total weight:3600kg
(4)Voltage/Frequency:380V 50Hz / (or according to customer's requirement)
(5)Total power:22KW
(6)Speed:0.6~6m/min
(7)Glass Size:
The grinding amount of flat edge:3mm
The maximum grinding width:2.5mm
The minimum glass size:80mm×80mm×3mm
Glass thickness:3~24mm
Product advantage:
1. Adopt XinGuang or other famous brand frequency speed control motor as transmit system,high or low speed all smooth and no vibration, low noise.
2. Digital display glass thickness.
3. Adopt manual filling function oil system , easy to maintain the skateboards which for support grinding motors.

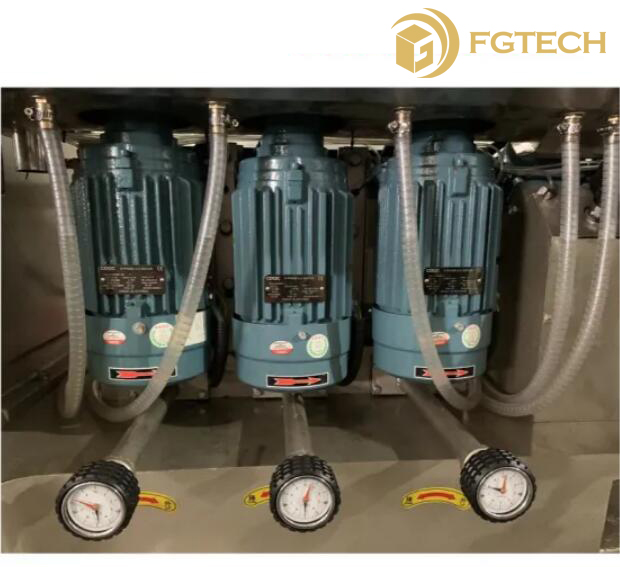

4. The last motor for polishing flat bottom glass, adopt double speed system motor.
5. 4 layer waterproof brush, easy to replace.
6. New design for the front beam, it is easy to replace the old screw axle that adjust glass thickness.
Grinding wheel introduction :
| 1#:Diamond wheel | 2#:Diamond wheel | 3#:Resin wheel |
| 4#:Polishing wheel | 5#:Resin wheel | 6#:Polishing wheel |
| 7#:Resin wheel | 8#:Polishing wheel | 9#:Polishing wheel |
| 10#:Polishing wheel |
