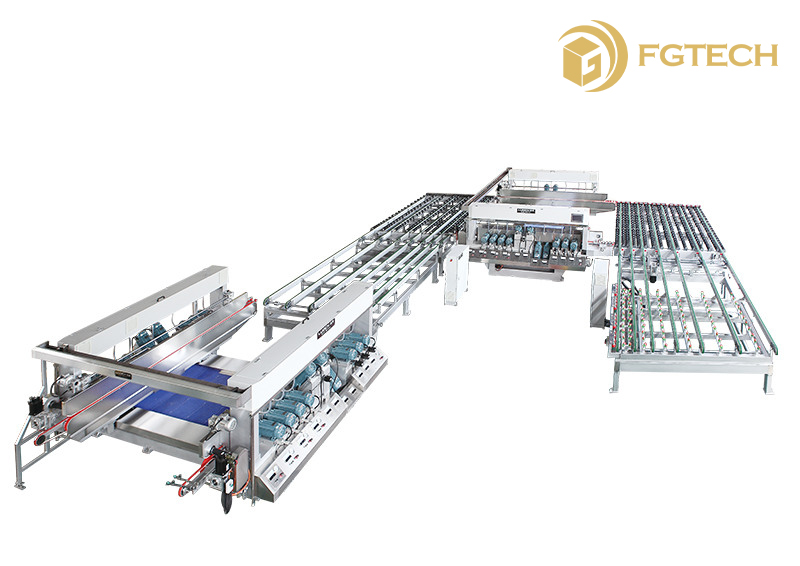

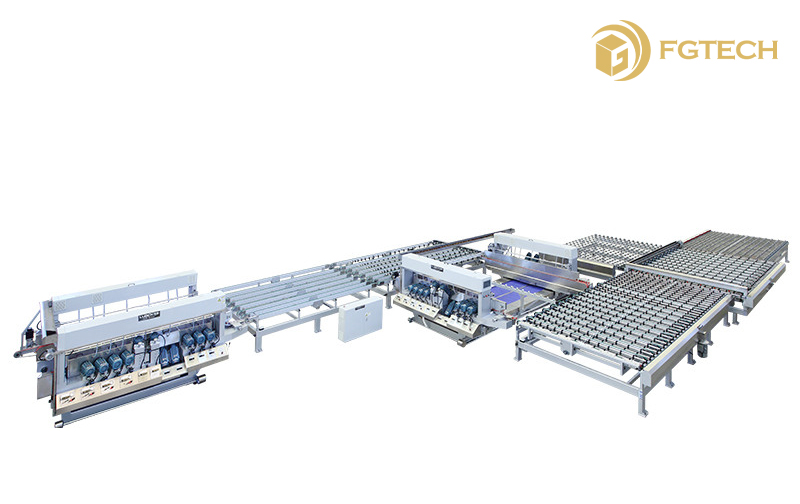

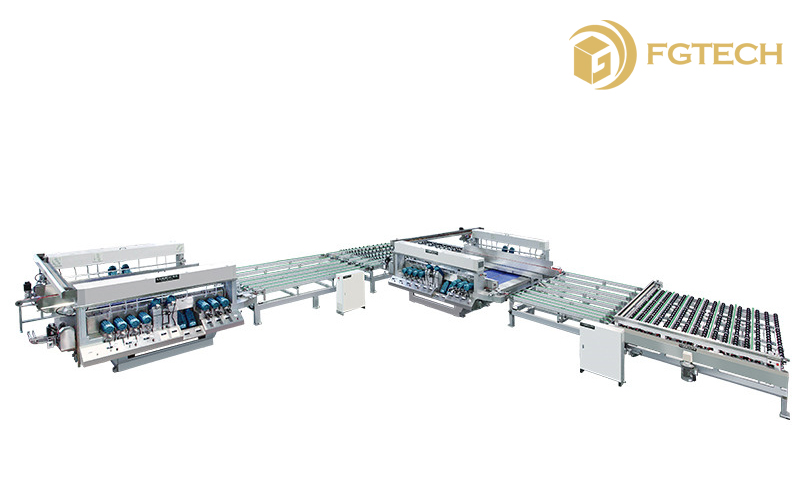

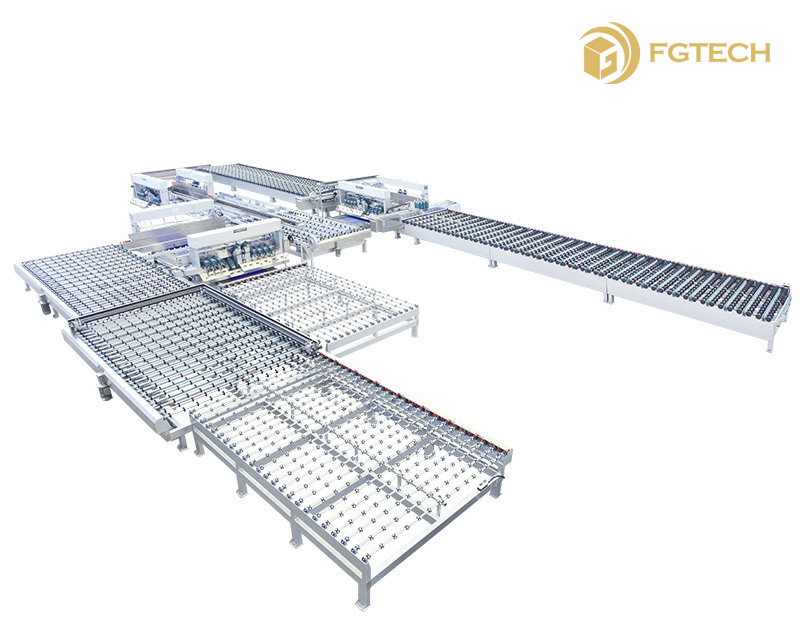

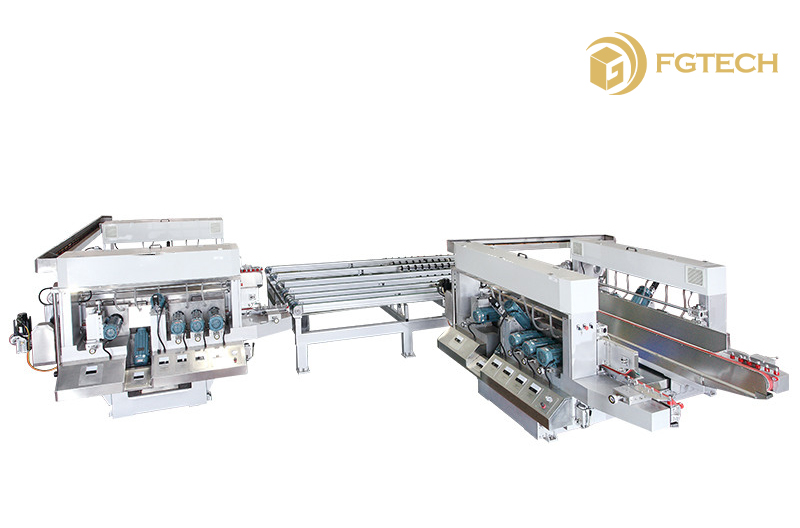

Jumbo Size Glass Four Sides Edger Grinding Processing Machine
Product ID : FEG-DED
Product Attributes :
Jumbo Size Glass Four Sides Edger Grinding Processing Machine 10000*5500*2000mm
Product Description
Basic Info.
Model NO.
FEG-DED
Grinding Head Number
28
Condition
New
Glass Processing Thickness
4-32mm
Open and Close Speed
0-15m/Min
Glass Processing Speed
0-12m/Min
Delivery Time
60-90 Days
Trademark
AGLASSTEC
Transport Package
Iron Frame & Shrink Film
Specification
10000*5500*2000mm
Origin
China
HS Code
8464201
1. DIFFERENT SIZE FOR OPTION
| MODEL | FGE-DED6025 FGE-DED6030 FGE-DED6033 |
FGE-DED9025 FGE-DED9030 FGE-DED9033 |
FGE-DED12025 FGE-DED12030 FGE-DED12033 |
FGE-DED20025 FGE-DED20030 FGE-DED20033 |
| Maximum glass processing size | 6000*2500mm 6000*3000mm 6000*3300mm |
9000*2500mm 9000*3000mm 9000*3300mm |
12000*2500mm 12000*3000mm 12000*3300mm |
20000*2500mm 20000*3000mm 20000*3300mm |
| Minimum glass processing size | 350*800mm | 350*800mm | 350*800mm | 350*800mm |
2.TECHNICAL INFORMATION:
| Glass processing thickness | 3-32mm |
| Glass Processing speed | 0-12m/min |
| Open and close speed | 0-15m/min |
| Diagonal tolerance of processing glass (mm) | (1m*1m) ±0.5mm/m |
| Parallel tolerance of processing glass(mm) | (1m*1m) ±0.1mm/m |
| Chamfer tolerance(mm) | <=0.3mm/m |
| Chamfer width(mm) | 1-3mm |
| Working table height | 870mm |
3.GRINDING WHEEL CONFIGURATION:
4.OPTION FUNCTION
OPTION A. Automatic compensation for diamond wheel
OPTION B. Automatic compensation and position locking for polishing wheel
OPTION C. Low-E coating removed device
OPTION D. Safety corner cutting device
OPTION B. Automatic compensation and position locking for polishing wheel
OPTION C. Low-E coating removed device
OPTION D. Safety corner cutting device
