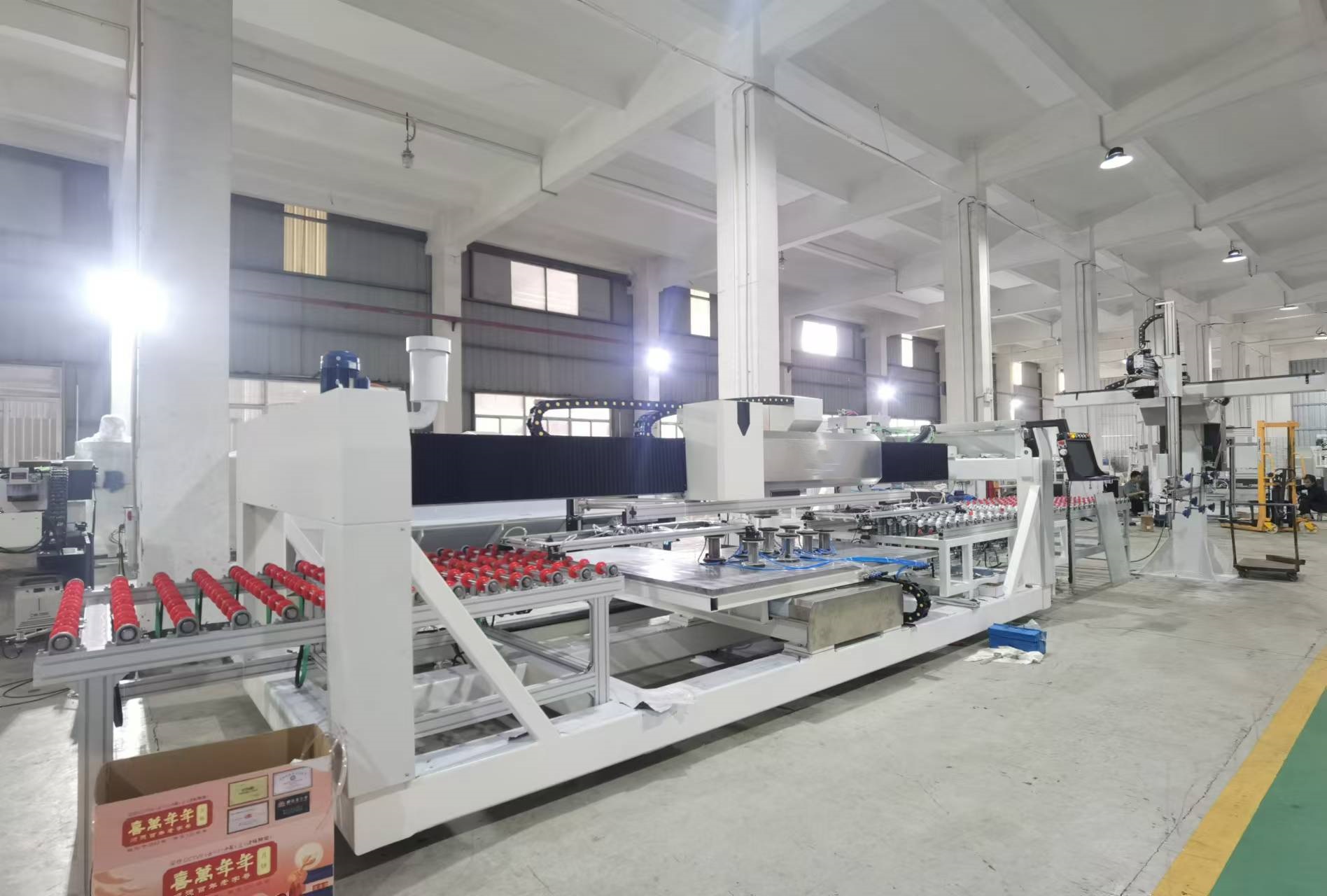

FGTECH's new dual-station high-speed glass processing center HCB1008

The unit is equipped with automatic preset position and automatic feeding and unloading table, and has a 4-axis mechanical arm on the chip. The size range of glass can be processed is 1000X800mm, and the thickness range is 2-6mm. Adopt double-station processing mode; The grinding speed is 5-25m/min. Can be realized including grinding round edge, straight edge rough precision grinding and polishing processing.

The two-station mill head is equipped with a whirlwind air-water separator, which can keep the operation station clean and tidy; The main principle is that the spindle grinding head is connected with the air pipe, and the water is absorbed to the water tank through the negative pressure fan, the glass powder is precipitated, and the clean water is returned to the grinding head through the water pipe through the small water pump. For large glass production customers, it is recommended to connect the water treatment system. The water requirement was 4L/ min.

The unit has 2 sets of vacuum water absorption system. Through the action of the negative pressure vacuum pump, the suction cup absorbs the glass. Negative pressure vacuum pump is a device used to generate negative pressure (that is, pressure below atmospheric pressure), and its function is to form a vacuum or negative pressure environment in a closed system by extracting gas or air.

CNC control system, 4 axis double channel control, with remote cooperation function. Using servo positioning, compared with the previous cylinder positioning, servo positioning is more accurate. Through the servo motor, the wheel first left and right positioning, and then front and rear positioning. For some heterosexual glass can be servo positioning, some heterosexual glass need to use visual positioning. The principle of visual localization is to shoot three points with a camera, transmit data and locate them.

Compared with the traditional spindle, we add a simple cooling pump for the spindle as the high-intensity operation of the spindle cooling equipment, the role is to protect the spindle because under the high intensity of work, because the high temperature burnout of the spindle affects the normal work and operation of the grinding head. The role of the cooling pump is to let the spindle cooling, the principle is to achieve water cooling by adding coolant. Coolant should be added in time when the coolant is below the value of 3.

Compared with the traditional high-speed machine, the double-station high-speed glass processing center not only has the function of edge grinding, but also has the function of polishing. Customers can choose according to their own needs. On the basis of grinding wheel and polishing, we also specially prepared for its automatic repair tool function, through the turning mode of the stone sheet automatic compensation, we can also be understood as a role of the grinding head of the whetstone.
